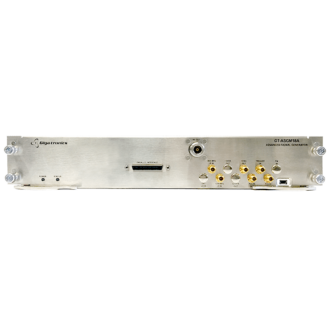

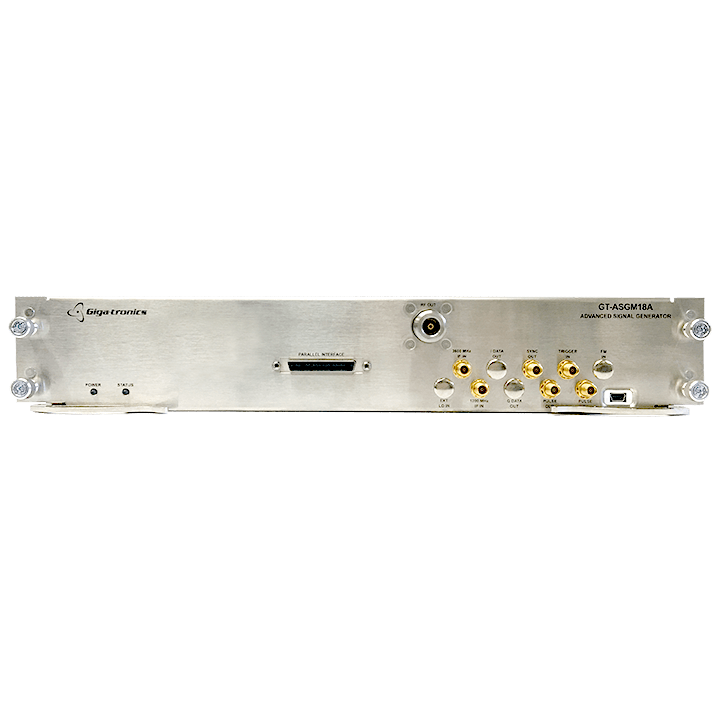

GT-ASGM18A - Advanced Signal Generator Module

GT-ASGM18A - Advanced Signal Generator Module
Main features
  • Frequency range – 100 MHz to 18 GHz with 1 Hz resolution
  • Frequency switching – real time, < 1 μs
  • Up-conversion – wide instantaneous bandwidth, 1 GHz
  • Modulation – AWG support
  • Multi-channel – phase coherent
  • Control – PDW, PCIe, BCD parallel, USB

The Giga-tronics GT-ASGM18A Advanced Signal Generator module combines an agile, low-noise, phase-coherent local oscillator with a state-of-the-art millimeter-wave up-converter to generate high spectral purity microwave signals over the 100 MHz to 18 GHz frequency range.  The up converted RF output allows the GT-ASGM18A to support the generation of wide bandwidth modulated signals used in RADAR and modern  communication systems. The GT-ASGM18A is based upon the industry standard AXIe modular format and works with the Giga-tronics GT-SRM100A frequency reference and the GT-CHSIS2A two-channel chassis or the GT-CHSIS4A four-channel chassis.

  • Operational Control:
    • Frequency – 100 MHz to 18 GHz (1 Hz)
    • Amplitude – 0 to -90 dB (0.5 dB)
    • Phase – 0° to 360° (0.1°)
  • Full band phase coherent frequency switching
  • Switching time:
    • Frequency – 650 ns
    • Amplitude – < 300 ns
    • Phase – < 300 ns
