DNx-AI-248-230 - 24-channel -2v to +32 V analog input board

DNx-AI-248-230 - 24-channel -2v to +32 V analog input board
Main features

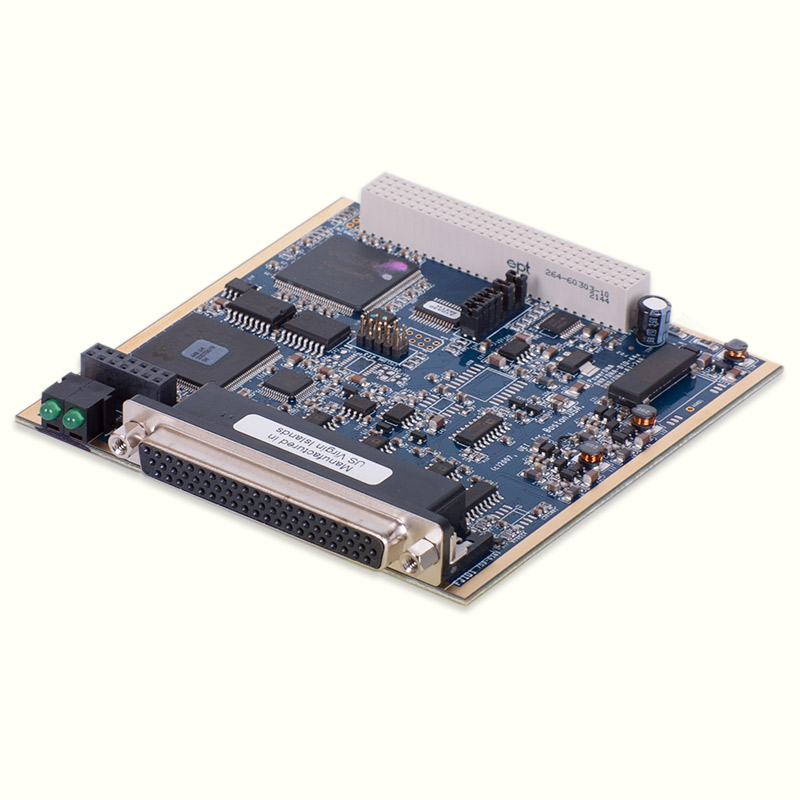

UEI card DNx-AI-248-230 18-bit 6Ks/s

Technical specifications

The UEI manufacturer’s card, DNX-AI-248-230 is a multiplexed differential analog acquisition card with 24 channels with a maximum sampling frequency of 0.25Ks / s per channel and 6Ks / s for the entire card. , with a resolution of 18 bits and an input range of + 32 / -2 Volt.

Software and drivers

The UEIDAQ Framework library uses the same API to access all devices of the DNx distributed cards. Using the UEIDAQ Framework library significantly reduces the amount of code required to perform data acquisition and control applications. UEI supports all 32/64 bit versions of Windows up to the most recent version of Windows 10. The UEIDAQ Framework provides a set of C ++ classes to easily interface your C ++ programs with acquisition devices UEI data. The UEIDAQ Framework also comes with an ANSI-C API. Instantly download Windows software and drivers for PowerDNA / DNR hardware from the UEI. Includes UEIDAQ Framework library, which supports the following software: VisualBASIC 6, VB.NET, LabVIEW, MATLAB, LabWindows / CVI, OPC server, Excel, .NET, C #, C / C ++, Borland Delphi, Borland C ++ Builder.

Depending on the reception station, the card references will be:
– DNA-AI-248-230 for Cubes
– DNR-AI-248-230 for Racks
– DNF-AI-248-230 for the FLATRACK

Card usable with the UEILogger.

Find all other UEI cards on our site
