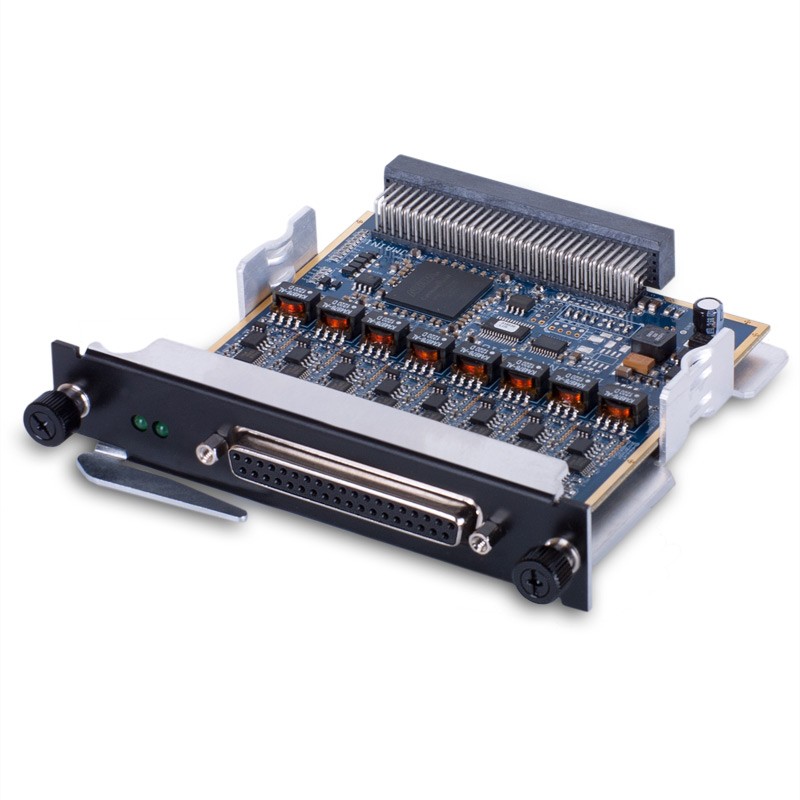

DNx-AI-218 - 8-Channel, 24-bit, fully isolated A/D board

DNx-AI-218 - 8-Channel, 24-bit, fully isolated A/D board
Main features
  • 8 differential analog input channels
  • 350 Vrms isolation (channel to channel and channel to chassis)
  • Simultaneous sampling (one A/D converter per channel)
  • Built-in anti-aliasing filters (@ 48% of sample rate)
  • 120 kHz per channel sample rate (480 kHz board max)
  • 24-bit resolution
  • Gains – 1, 2, 4, 8, 16, 32 and 64

UEI card DNx-AI-218 24-bit 8 isolated channels 120Ks / s per channel / Voltage + – 10V

Technical specifications

The UEI manufacturer’s board, DNX-AI-218 is an analog acquisition board 8 isolated differential channels with maximum sampling of 480Ks / s for the whole board, with a resolution of 24 bits and an input range of + – 10 V. A programmable gain of 1,2,4,8,16, 32 and 64. Isolation 350 Vrms (between channels and between channel and chassis). The card has an overvoltage protection ± 40 V powered or not.

Software and drivers

The UEIDAQ Framework library uses the same API to access all devices of the DNx distributed cards. Using the UEIDAQ Framework library significantly reduces the amount of code required to perform data acquisition and control applications. UEI supports all 32/64 bit versions of Windows up to the most recent version of Windows 10. The UEIDAQ Framework provides a set of C ++ classes to easily interface your C ++ programs with acquisition devices UEI data. The UEIDAQ Framework also comes with an ANSI-C API. Instantly download Windows software and drivers for PowerDNA / DNR hardware from the UEI. Includes UEIDAQ Framework library, which supports the following software: VisualBASIC 6, VB.NET, LabVIEW, MATLAB, LabWindows / CVI, OPC server, Excel, .NET, C #, C / C ++, Borland Delphi, Borland C ++ Builder.

Depending on the reception station, the card references will be:

– DNA-AI-218 for Cubes
– DNR-AI-218 for Racks
– DNF-AI-218 for the FLATRACK

Card usable with the UEILogger.
