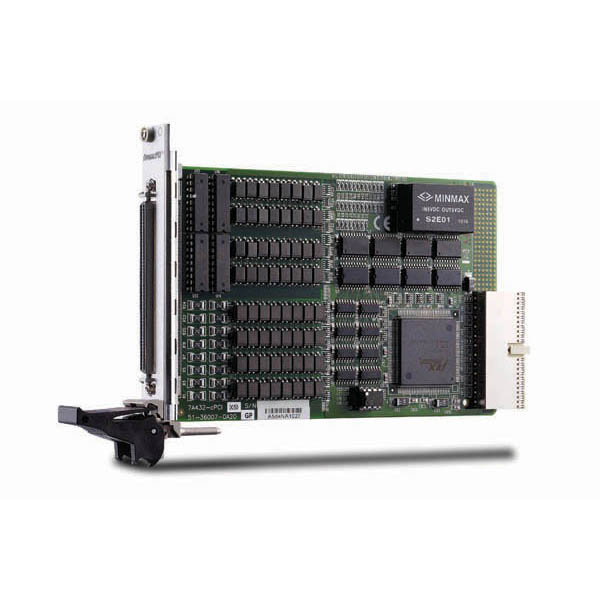

cPCI-7432/7433/7434 - 64-CH Isolated Digital I/O Modules

cPCI-7432/7433/7434 - 64-CH Isolated Digital I/O Modules
Clear
Main features
  • 3U Eurocard form factor, CompactPCI compliant (PICMG 2.0 R2.1)
  • 32-CH isolated digital inputs & 32-CH isolated digital outputs for cPCI-7432
  • 64-CH isolated digital inputs for cPCI-7433
  • 64-CH isolated digital outputs for cPCI-7434/7434P
  • 5000 VRMS isolation voltage
  • Sink current up to 500 mA on single isolated output
  • Isolated input voltage up to 24 V for cPCI-7432/7433
  • Two external interrupt sources for cPCI-7432/7432RP/7433
cPCI-7432 32-CH Isolated DI Card and 32-CH Isolated DO Card
cPCI-7433 64-CH Isolated DI Card
cPCI-7434 64-CH Isolated DO Card

ADLINK’s cPCI-743X series cards are 64-CH high-density digital input and/or output cards that provide a robust 2,500 V isolation protection and are suitable for most industrial applications. The wide input range of the cPCI-7432 and cPCI-7433 makes it easy to sense the status of external devices.

The cPCI-7432 and cPCI-7434 feature a wide output range from 5 to 35 V, suitable for relay driving and industrial automation applications. The cPCI-7432 and cPCI-7433 also provide two interrupt sources on digital input channels, which are easily configurable.
