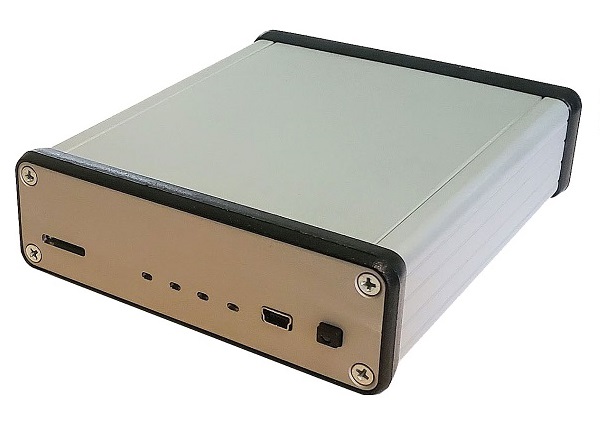

NETWAY 92 - Stand-alone real-time multiplex simulation and analysis tool

NETWAY 92 - Stand-alone real-time multiplex simulation and analysis tool
NETWAY 92 - Image 2
Main features
  • SD Card 8/16/32/64 GB card. File operations controlled by the emulation
  • PC Interface Mini USB, a built-in serial bridge for firmware update
  • Network Connector 44-pin HDB connector for power, networks, and I/O signals
  • Support up to 32 IO (Input/Output) signals. Each signal can be processed as analog or digital, and some of them as PWM
  • Dimensions 5.25″ x 4.25″ x 1.25″ (aluminum enclosure)
  • Netway desktop application. Compatible with Windows 7 and later (32 or 64-bit OS)
  • CommonNetway.dll Type Library for custom control development (MS Studio 19)
  • RTC on board, configurable power-down, power-up from CAN activities
  • Stand-alone operations based on Emulation program created and downloaded by Netway application

Netway Product is designed to monitor and control all multiplex network protocols utilized in the automotive industry. Netway device can be connected to a PC Netway Application via USB, Serial, or Ethernet LAN interface. When connected to a PC, the Netway device can be configured with an Emulation program, which can be stored in the device memory to enable it for real-time processing per emulation in stand-alone mode.

Typical real-time tasks performed in stand-alone mode:

  1. Message monitoring, analysis, processing, data logging, etc.
  2. Rest of vehicle node simulation
  3. Gateway between protocols
  4. End Of Line testing
