DNA-MIL - Rugged, Mil/Aero style 4-slot I/O chassis

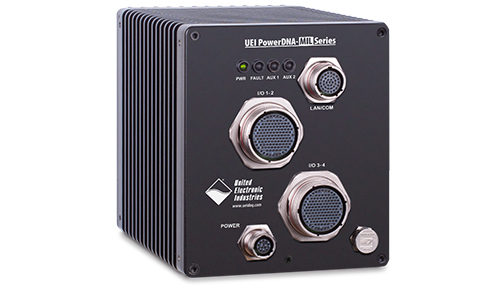

The DNA-MIL Cube is an advanced military/aerospace-specified data acquisition and I/O platform housed in a compact 6.2″ x 7.1″ x 8.7″ chassis. The DNA-MIL is is designed to meet MIL-STD-810 and MIL-STD-461 (including all power supply requirements), and supports virtually any input, any sensor, any interface I/O.

The ruggedized chassis is easily configured as a stand-alone I/O controller or embedded, programmed and hardened for integration with high density, multifunction data acquisition systems. Its highly advanced architecture provides users with a simple and universal software API to construct, add and reconfigure applications based upon the I/O layers.

The DNA-MIL platform is 100% COTS based and supported by UEI’s family of over 50 compatible analog, digital and interface I/O boards, including ARINC-429, MIL-1553, CAN, RVDT/LVDT, synchro/resolver, RS-232/422/485, strain gauge, quadrature encoder, high-voltage analog outputs (up to 115 VDC) with high drive analog output (up to 200 mA) and more. It can also run Simulink models for actual Hardware-In-the-Loop (HIL) testing and rapid prototyping while users remotely monitor and tune parameters. For interoperability with PLCs and SCADA systems, the DNA-MIL is also Modbus/TCP compatible. All I/O connections to this MIL-grade DAQ chassis are through 38999-style round connectors.

The DNA-MIL supports all popular and MIL-hardened operating systems and programming languages, including Linux, VxWorks, QNX (all with C/C++ drivers) as well as an extensive array of application packages, including LabVIEW, MATLAB and Simulink. The DNA-MIL also features built-in-test and self-diagnostic capability for check status operation and worry-free reliability.

Outstanding Software Support:

• All popular operating systems including Windows, Linux, INtime , VxWorks and QNX
• All popular programming languages including VB, VB.NET, C, C#, C++, JAVA
• All popular application packages including MATLAB, Simulink, LabVIEW and more
