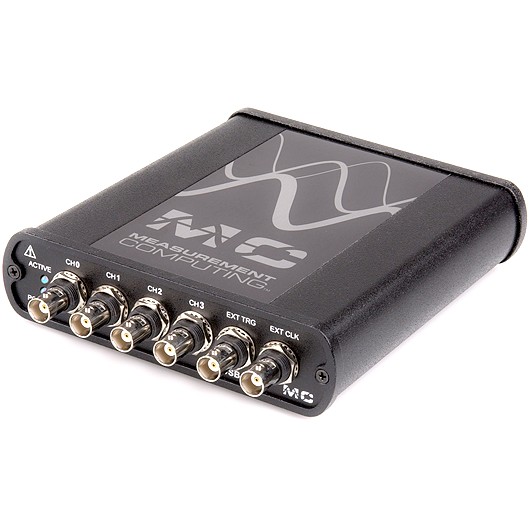

USB-1604HS Series - Multifunction USB DAQ with 4 simultaneous 16-Bit A/D, up to 1.33 MS/s (option 2 D/A)

USB-1604HS Series - Multifunction USB DAQ with 4 simultaneous 16-Bit A/D, up to 1.33 MS/s (option 2 D/A)
Clear
Main features
  • 16-bit high-speed USB devices
  • Simultaneous analog, digital, and counter sampling
  • Sample rates up to 1.33 MS/s per channel
  • Four analog inputs
  • Up to two analog outputs (only on USB-1604HS-2AO)
  • 16 digital inputs and 16 digital outputs
  • One digital trigger input
  • Four counter inputs
  • Two timer/pulse outputs
  • Three quadrature detectors
  • Input and output pacer clocks
  • External trigger and clock input
USB-1604HS-2AO-EU DAQ device with 4 SE simultaneous analog inputs, 16-bit resolution, 1.33 MS/s/ch sample rate, 2 analog outputs (Eu plug included)

USB-1604HS Series: DAQ-USB MCC with 4 A/D 16-Bit, simultaneous, up to 1.33 MS/s

Measurement Computing’s (MCC) USB-1604HS Series is a DAQ-USB with 4 simultaneous single-wire (SE) analog inputs, 16-Bit resolution. The input range is software programmable to ± 10V, ± 2.5V or 500mV. The maximum sampling rate is 1.33 MS/s per channel.

USB-1604HS-2AO provides two independent, 16-bit, analog outputs. Each analog output can continuously output a waveform at up to 1 MHz.

The digital I/O lines are configured as 16 inputs and 16 outputs. Users can pace digital operations with the onboard scan clock or with an external source. Digital input ports can be read synchronously along with analog channels in a scan, or asynchronously before, during, or after an analog input scan. The digital inputs can sustain rates up to 8 MS/s for
one channel, when no analog channels are sampled. When analog channels are also sampled, the rate is 1.33 MS/s for the USB-1604HS and USB1604HS-2AO. Digital outputs can be updated asynchronously at any time before, during, or after an acquisition. Users can generate a digital pattern up to 4 MS/s. Digital pattern generation is clocked using the output scan clock

USB-1604HS Series devices have four counters (counting, period measurement, pulse width measurement) 32-Bit TTL level that accept frequency inputs up to 20 MHz. Users can connect up to three quadrature encoders to measure linear and rotary position. The USB-1602HS Series have two timer outputs for generating pulse width waves.

INCLUDED SOFTWARE

  • TracerDAQ® for acquiring and displaying data and generating signals
  • InstaCalTM software utility for installing, configuration, and testing
  • Universal Library includes support for Visual Studio® and Visual Studio®.NET, including examples for Visual C++®, Visual C#®, and Visual Basic®.NET
  • ULx for NI LabVIEWTM Library of VIs and example programs to speed your NI LabVIEW development
  • Python™ Support for MCC DAQ Products

OPTIONAL SOFTWARE

  • DASYLab®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
  • TracerDAQ®Pro – Out-of-the-box virtual instrument suite with strip chart, oscilloscope, function generator, and rate generator – professional version
  • MATLAB® Support for MCC Products – Software Environment for Data Acquisition, Data Analysis, and Application Development
