PS48401 - PXI Programmable Power Supply, 0-48V/2 A

PS48401 - PXI Programmable Power Supply, 0-48V/2 A
Main features

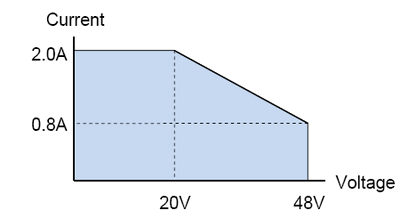

  • 0-48VDC / 2A / 40W max.
  • Isolated output
  • No external power source required
  • High accuracy / low noise output voltage
  • Programmable Current Limit
  • 16 Bit Read Back of Output Voltage / Current
  • 2-slot width, PXI / cPCI Instrument
  • Programmable sequencer
  • .NET, LabVIEW and LabWindows/CVI (VXIplug&play compatible) drivers included
  • Soft Front Panel included

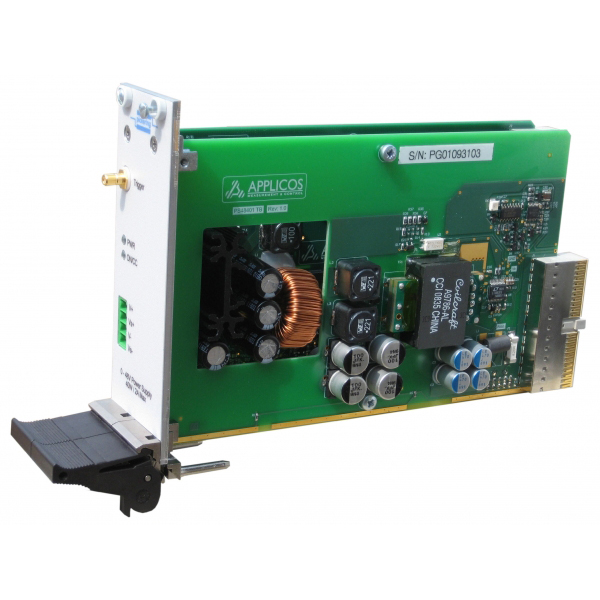

The PS48401 is a Programmable DC Power supply in a 2-slot PXI / cPCI form factor. Featuring a fully isolated output capable of providing 0-48VDC / 2A / 40W. It offers a programmable current limit and the ability to measure the output voltage and current under software or trigger control.

Special functions:

Measure output voltage or current, software controlled.
Measure output voltage or current, external trigger controlled.
Update output voltage and current limit, external trigger controlled.
Sequence above functions and store measured values into on-board memory
