NETWAY 84 - Stand-alone real-time multiplex simulation and analysis tool

NETWAY 84 - Stand-alone real-time multiplex simulation and analysis tool
Main features
  • Two independent CAN channels
  • Two independent UART channels
  • Two independent PWM J1850 channels
  • I/O inputs digital and analog

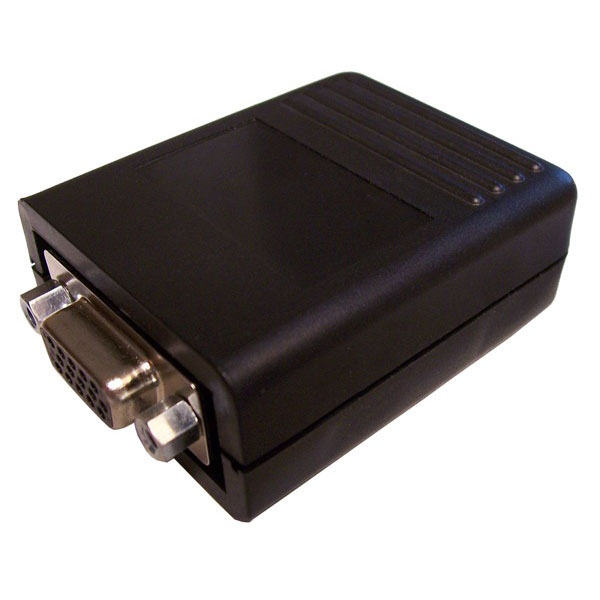

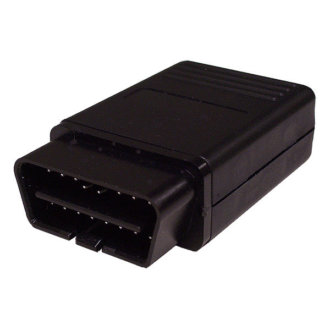

  • Connecteur OBD ou HD15
  • CAN: Two independent CAN channels
    • Channel 1: High-Speed Dual-Wire CAN
    • Selection of transceivers for channel 2: High-Speed Dual-Wire / Single-Wire(GMLAN)
    • Software controlled bus termination for both channels
    • Standard 11-bit and 29-bit (extended) header
    • Supports multi-frame CAN (ISO-15765)
    • Supports J2534 with SET32.DLL library
    • J1939, J1979, and more
  • UART: Two independent channels:
    • UART protocols – LIN 2.1(1.3), KWP2000, KWP1281, ISO9141-1, ISO9141-2, J1708, J1587, SAEJ1922, etc.
    • Selection of transceivers for channel 2: LIN (K-Line), RS485.
    • Block transfer support.
  • J1850: two independent channels VPW (Class2) and PWM (SCP). Block transfer support.
  • I/O Outputs are open drain, pull-up maximum to 50V, load maximum 100mA.
  • I/O Input signals range 0-15V, 12 bits resolution.
  • Emulation script language for real-time networks and signals simulation, worst case resolution less than 1ms for all operations including data logging, network simulations and I/O signal measurement and generation.
  • Events triggering by network messages, timers or/and I/O signal transitions
  • Stand-alone operations including in-vehicle gateway, end-of-line test, on bench rest of vehicle simulator, data logging, etc. Sleep mode current consumption less than 1mA.
  • Internal memory capacity ~1,000 messages. Flexible dynamic filtering for data logging.
  • When connected to PC unlimited logging and analysis with variety of graphical network signals representation is available. Traffic replay and more.
  • Warranty and technical support (free software/firmware upgrades) for one full year from the purchase date
