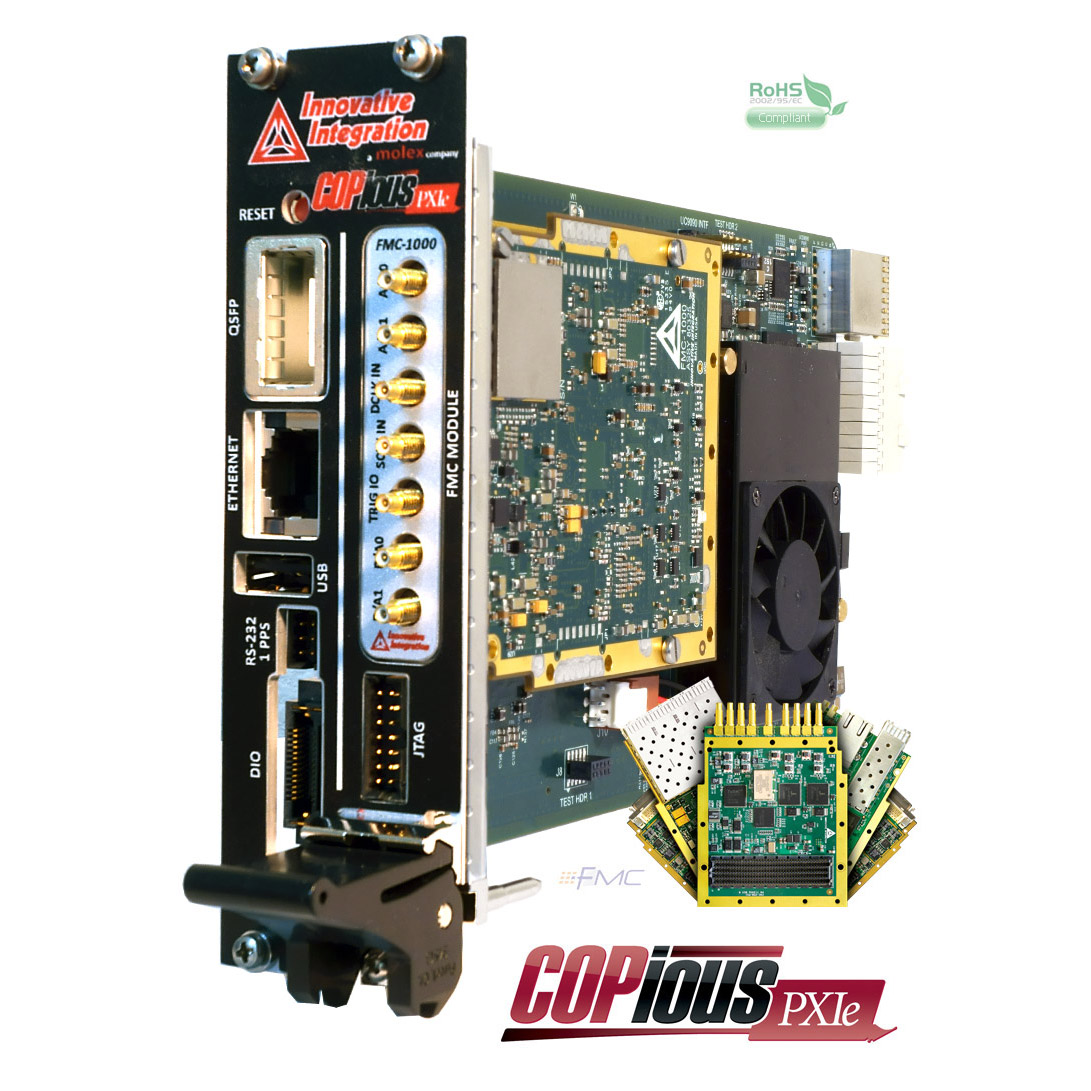

COPious-PXIe - An Embedded PXI plug-in, Zynq SoC coprocessor with FMC IO Site

COPious-PXIe - An Embedded PXI plug-in, Zynq SoC coprocessor with FMC IO Site
Ask for a quote
Demander un devis
Main features
  • Combines an Zynq Z7045 SoC with FMC IO module on a PXI-compatible plug-in card
  • Powerful, dual floating-point Arm A9 CPU performance
  • Industry-standard 8HP PXIe form-factor
  • Self-boot operation. Operates diskless and headless
  • Runs Linux applications
  • Configurable I/O uses standard HPC FMC IO module. Add anything from RF receivers to industrial control modules.
  • I/O site (VITA 57) deliver up to 6 GB/s to PL memory, 2 GB/s to PS memory
  • Backplane timing and triggering support for I/O
  • Supports Innovative FMC I/O module features for private data channels, triggering and timing features
  • USB2.0, 1 Gb Ethernet, eMMC, SPI, RS232 ports
  • Boots Linux from onboard eMMC

COPious is a user-customizable, turnkey embedded instrument that includes two A9 CPU cores. Linux runs in core 0 to provide ethernet, USB and disk connectivity while core 1 runs real-time stand-alone applications. COPious is compatible with Innovative’s wide assortment of ultimate-performance FMC modules. With its modular IO, scalable performance and easy to use CPU core architecture, the COPious reduces time-to-market while providing the performance you need.

Embedded Control — Install a COPious into any standard PXIe slot to provide autonomous, real time control and data acquisition. Performance is independent of host PC operating system. Available IEEE 1588 network or GPS-synchronized timing, triggering and sample control is multiplexed to routed to the FMC module site, providing limitless expansion via multiple nodes.

Uniquely customizable — An HPC FMC site for I/O, user- programmable FPGA for I/O interfaces, triggering and timing control, 4 lane gen2 PCIe connectivity for fast data streaming and 1 GbE ethernet and USB 2 port to connect to large capacity storage media.

Remote or Local Operation — Continuous data streaming up to 100 MB/s (1 Gb LAN) or 480 Mb/s to local USB drive. Optional, stand-alone, autonomous operation with precision-timed sampling.

Rugged — Runs from flash in a compact, rugged footprint that is ready for embedded operation.
